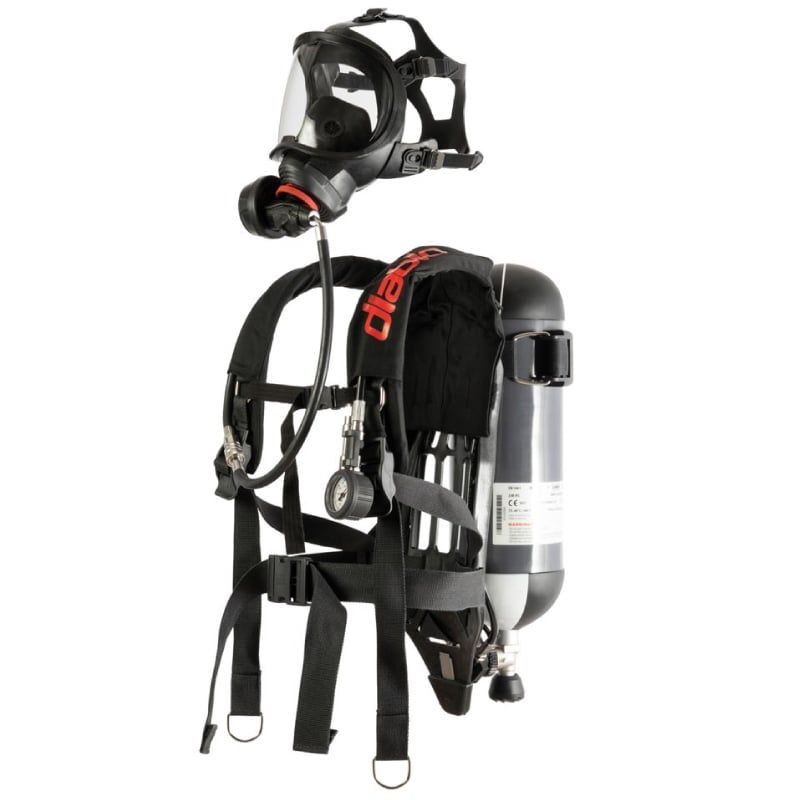

Diablo Advanced Type 2 Self Contained Breathing Apparatus (SCBA)
Description
DIABLO range includes self-contained open circuit breathing apparatuses with full face mask and demand valve, in compliance with EN 137. The Diablo Advanced and Diablo Industrial are Type 1, for general use, and also available in the Type 2 version, which positively passed the flash-over test. This test involves an exposure of the device to heat and flame for 10 seconds at 900°, followed by a drop. During and after the test the apparatus continues to work granting positive pressure inside the mask and maintaining self extinguishing feature. The Diablo Advanced (Type 1) and Diablo Industrial (Type 1) breathing apparatus are available, on request, for use in a potentially explosive atmosphere. The Diablo Industrial MM breathing apparatus is also MED (for naval use).
- Anatomic Back-Pack made of self-extinguishing synthetic resin;
- Body harness made of a self-extinguishing composite textile;
- Black shoulders with yellow-printed name “DIABLO” identify a type 1 SCBA. Black shoulders with red-printed name “DIABLO” identify a type 2 SCBA;
- Padded belt available on demand;
- Compensated pressure reducer C2000®, which allows a free flow of more than 1000 l /min;
- Chest block, compact and light, connected to a flexible hose, including pressure gauge and warning whistle;
- Pressure gauge extremely user-friendly, thin and light;
- Medium Pressure Calibration Rubber Seal, fixed to Pressure Reducer with stainless steel. Panduit straps;
- Two hoses only, for medium and high pressure, easy to maintain and replace;
- Single-stage type warning acoustic whistle, fitted with a self-test device;
- The Demand valve is of the self-positive type, i.e. it is in a standby mode and switches automatically to positive pressure at the first breath without any waste of air. Available with both threaded connector M45x3 or plug-in;
- Positive Pressure full face mask C607 SP/A, SFERA SP/A and IDEA SP/A, made of either EPDM or Silicone rubber.
- Moreover, DIABLO ADVANCED is available in three additional configurations which allow the connection to a second operator (OUT), a second source (IN) or to both (IN&OUT)
- EC Certified according to Article 10 of 89/686/EEC PPE Directive
- EC Certified according to 2014/68/UE PED Directive
