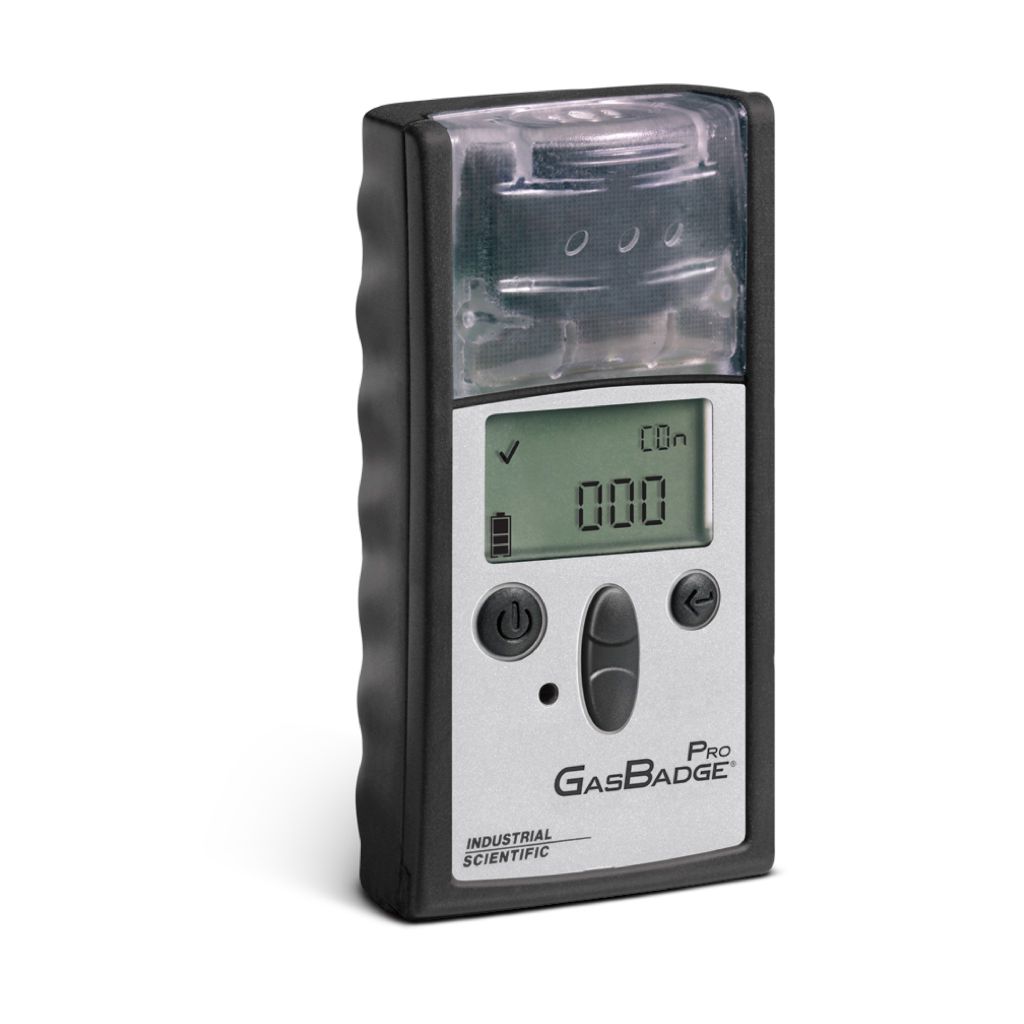

GasBadge Pro

GasBadge Pro

Contact

Description

Built to Industrial Scientific's highest quality and reliability standards, GasBadge® Pro provides a lifetime of gas hazard protection with more features than any other single gas detector available.
• Full-featured, single gas detector
• Lifetime warranty
• Interchangeable sensors
• iNet® Ready and docking station compatible
Specifications:
Case:
• Rugged, water-resistant polycarbonate shell with protective concussion-proof overmold. RFI resistant.
Dimensions:
• 94 mm x 50.8 mm x 27.9 mm.
Weight:
• 85 g.
Display:
• Custom LCD with graphical icons for easy use.
• Segmented display for direct gas readings.
• Backlight for low light conditions.
• “Go/No Go” display mode; Peak reading indication
Alarms:
• User selectable low and high alarms
• Ultra-bright LEDs, loud audible alarm (95 dB) and vibrating alarm
Battery Run Time:
• User replaceable 3V, CR2 Lithium battery, 2,600 hour run time, typical.
Data Logging:
• 1-year continuous storage of data
Temperature Range:
• -40ºC to 60ºC.
Humidity Range:
• 0-99% RH (non-condensing) typical.
Event Logger:
• Continually on. Logs last 15 alarm events, stamping how long ago the event occurred, the duration of the event, and the peak reading seen during the event. Event-logger can be viewed on PC or printed directly from the instrument to an infrared printer.
Certifications:
• ANZEx: Ex ia I/IIC T4
• ATEX: Ex ia I/Ex ia IIC T4; Equipment Group/Category I M1/II 1G
• China Ex: Ex ia I/IIC T4
• CMA: Ex ia I
• CSA: Cl I, Gr A-D, T4; Ex ia IIC T4
• KC: Ex ia I/IIC T4
• IECEx: Ex ia I/IIC T4
• INMETRO: Ex ia IIC T4
• UL: Cl I, Div 1, Gr A-D, T4; Cl II, Gr E-G
