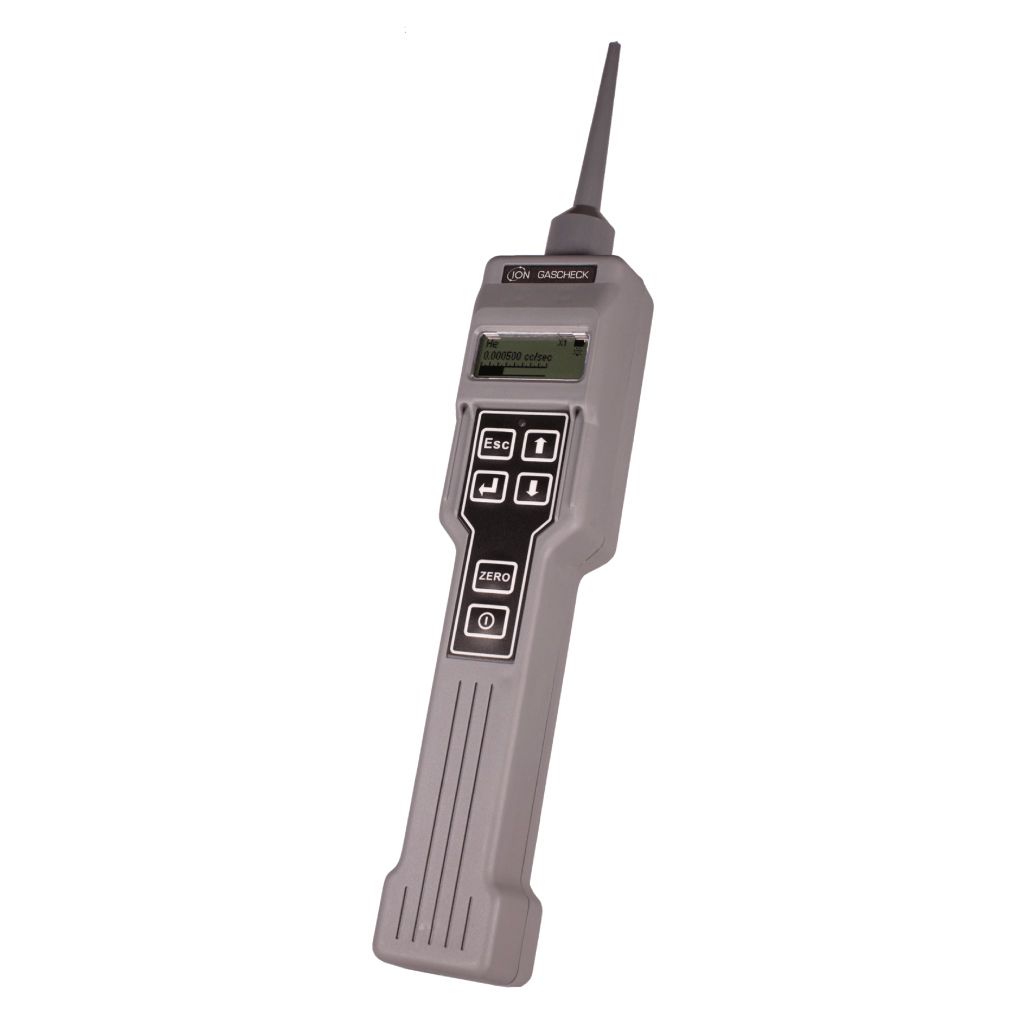

Gascheck G

The GasCheck G gas leak detector represents the latest in gas detection technology. Its advanced system of micro thermal conductivity enables advanced sensitivity for the rapid, effective detection of gas leaks down to cc/sec, mg/m3 or ppm levels.
Designed for the search and location of gas leaks, the GasCheck G leak detector provides you with effective detection of almost any gas or gas mixture. Robust and reliable, the GasCheck G leak detector gives stable, repeatable readings of the detected gas.
Specifications:
Detector:
• Micro thermal conductivity detector (MTCD).
• Sensor is poison resistant with over range protection.
Operation:
• Battery Type: 4 x alkaline AA size or NiMH (rechargeable).
• Typically 40 hours life.
Sensitivity (cc/sec):
• He 1x10-5, CH4 5x10-5, R12 5x10-5, Ar 1x10-4.
Accuracy:
• ± 55% Displayed reading – One digit.
Response:
• T90 = 1 second rise and clear down.
Alarms:
• Flashing LED and 90 dBA (at 10 cm) audible sounder.
Data Logging:
• 10 data points (available for G3 only).
Calibration:
• Factory calibrated to fully documented procedures in accordance with our ISO 9001:2008 Quality Management System.
Flow rate:
• 2 cc/min.
Weight & Dimensions:
• Instrument with probe: 390 x 60 x 49 mm. Case: 420 x 320 x 97 mm.
• Instrument: 0.45 kg. Packed 1.6 kg.
Temperature:
• Operating: -20oC to + 60°C.
• Storage: -20oC to +70°C.
• Humidity: 0 to 99% RH (non-condensing).
