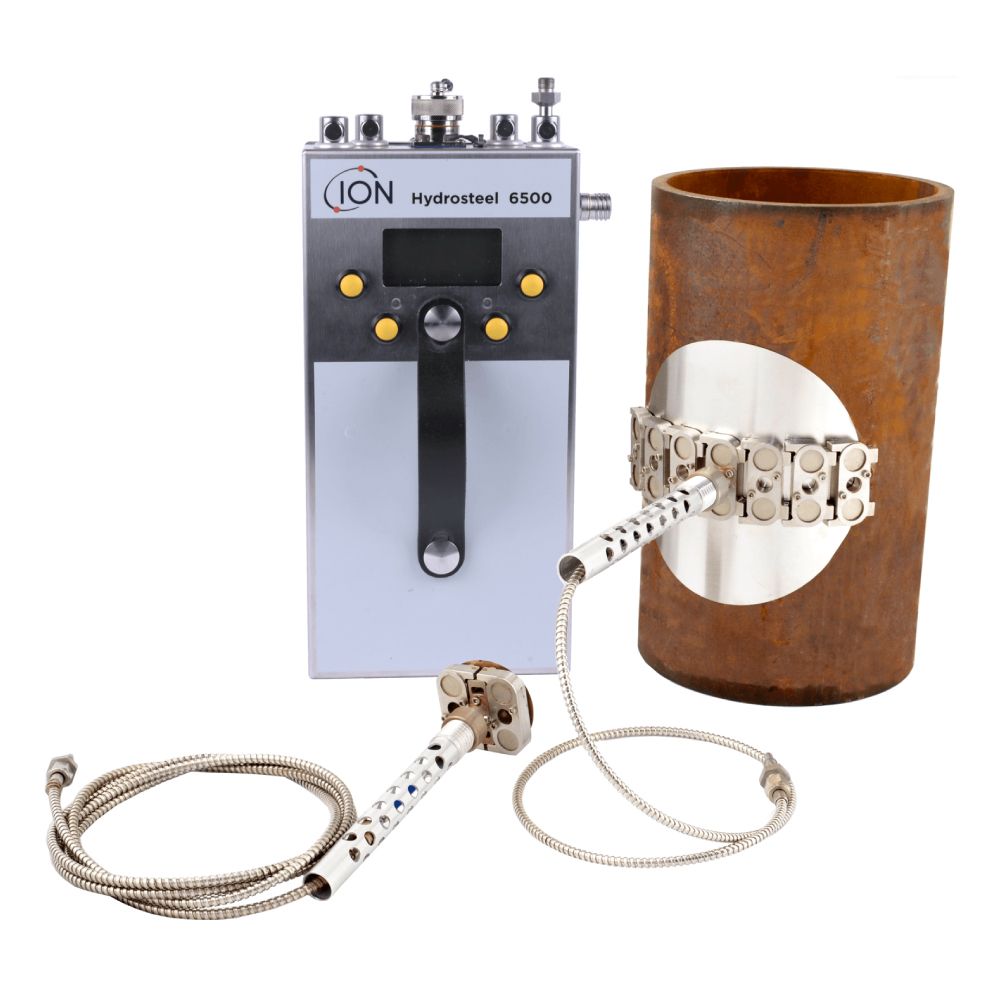

Hydrosteel 6500

Hydrosteel 6500 delivers the simplicity of measurement of the original handheld tool, with months of battery operated monitoring capability. Four separate sample lines ensure complete confidence in measurement integrity, so that the flux signature of a corrosion scenario is fully evident, and the success or otherwise of measures taken to mitigate corrosion and completely realised. The new Hydrosteel comes a new probe featuring more reliable attachment and wider temperature tolerance.
Specifications:
Resolution:
• 2 pL/cm2/s.
Accuracy:
• Resolution or +-10%, whichever is greater
Response:
• 90% in 90 seconds.
Flux range:
• 1 to 2,000 pL/cm2/s.
Calibration:
• Concentration: 100 ppm hydrogen.
• Flow:self calibrating.
Gas fittings:
• Staubli® RBE3.
Conduit:
• 3 or 6 m, quick fit connections to case.
Probes:
• LR probe, 150 mm diameter.
• SRprobe 60 mm diameter.
Keypad:
• Panel mount IP rated buttons around LCD.
Lights:
• Backlit display only.
Display:
• 27 cm2. Iconographic menu.  Battery reserve, programme selection, read out selection, etc.
Battery:
• Two 4.8 A.hr Li-ion batteries of rectangular construction at 3.8 V nominal to intrinsic safe design.
Software:
• One single standard software version is required for each kit. All upgrades and data transfer achieved via USB connection
• Customer configuration via key pad or USB..
Communication:
• USB 2.0, enabling data transfer, programming
and software updates. Design for 2.4 GHz wireless with proprietary protocol for communication to DCS, and an external vandal proof mushroom type or other aerial.
Options:
• Data log and monitoring frequency from 1 Hz to 1 reading / day, monitoring station sequence etc.
Memory:
• 2 Gbytes data on internal SD card.
Portability:
• Leather harness for analyser,  spot probes and conduit.
Components:
• Harness supporting analyser, LR and SR probe, background probe, 3 m conduit.
Size & Weight:
• 320x185x90 mm, 4.1 kg without leather case.
• 4.45 kg with case.
IP Rating:
• Designed to IP 66.
Approval:
• Initial Intrinsic safety narrative for IEC-ex.
