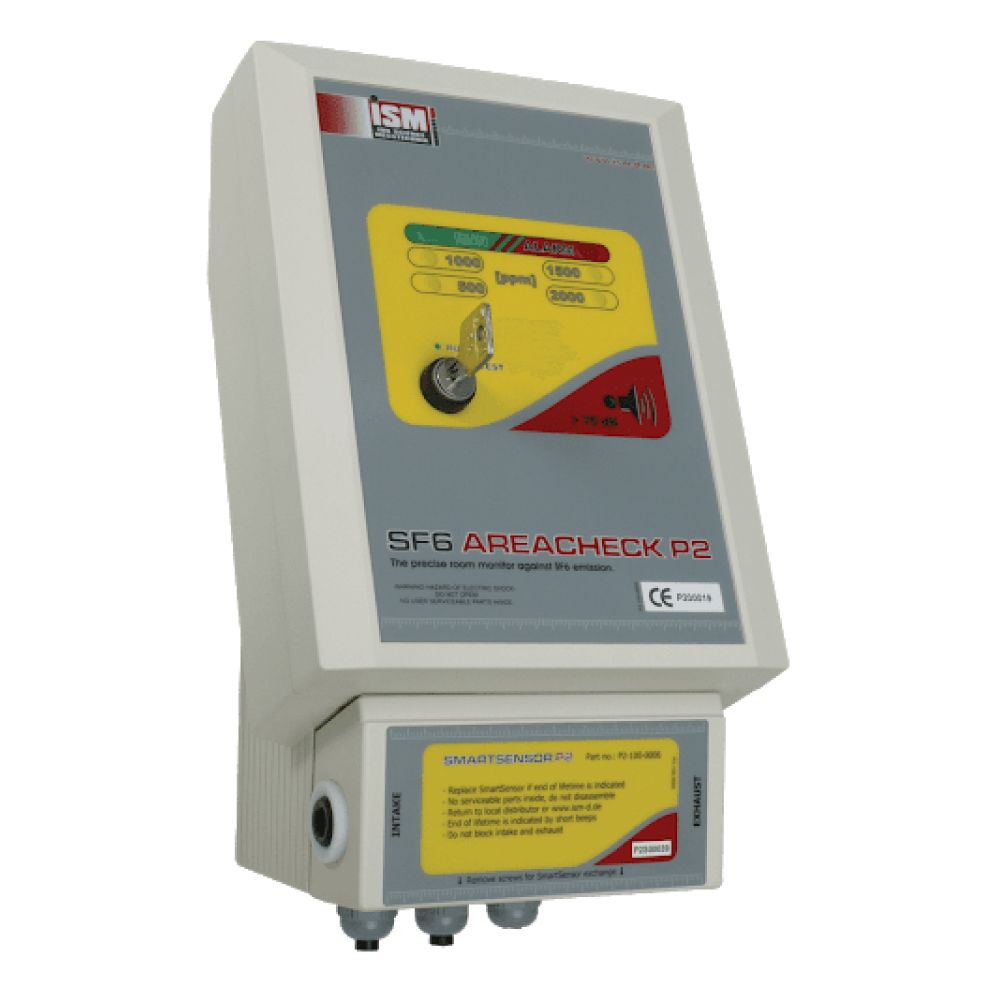

SF6 AreaCheck P2

Designed for fixed continuous SF6 area monitoring, the AreaCheck P2 with award winning Negative Ion Capture (NIC) technology rapidly detects low-level SF6 leaks.
This fixed SF6 leak detector utilises relay output for immediate awareness of detected leaks and presents no cross sensitivity with any other gas or moisture in the air.  The AreaCheck P2 has no filter problems due to its minimum air intake (compared to pump operated systems).
Instrument setup is carried out easily via a computer or network interface, allowing optimal protection from unauthorised access. The SF6 AreaCheck P2 has a built-in low flow alarm and self-diagnostic testing
Specifications:
Detection Principle:
• SF6: NIC.
Range:
• 0 - 2,000 ppm SF6.
Resolution:
• 500 ppm SF6/10 ppm.
Mains Power:
• 100 – 240 VAC, 50/60 Hz.
Power Consumption:
• 18 VA.
Operating Temperature:
• -5°C to 45°C.
Storage Temperature:
• 20°C to 45°C.
Operating Humidity Range:
• 10 - 90% (non condensing).
Max Load, Relay Output:
• 2.5A / 230 VAC.
Size:
• H: 280 x B: 165 x T: 125 mm.
Protection Class:
• IP 52.
Noise Level of Audible Alarm:
• >75 dBA, 1 m.
Weight:
• 1.5 kg (w/o wall mounting bracket).
Fuse:
• T 1A (Slow Blow).
