SF6 LeakCheck P1:p

SF6 LeakCheck P1:p

Contact

Description

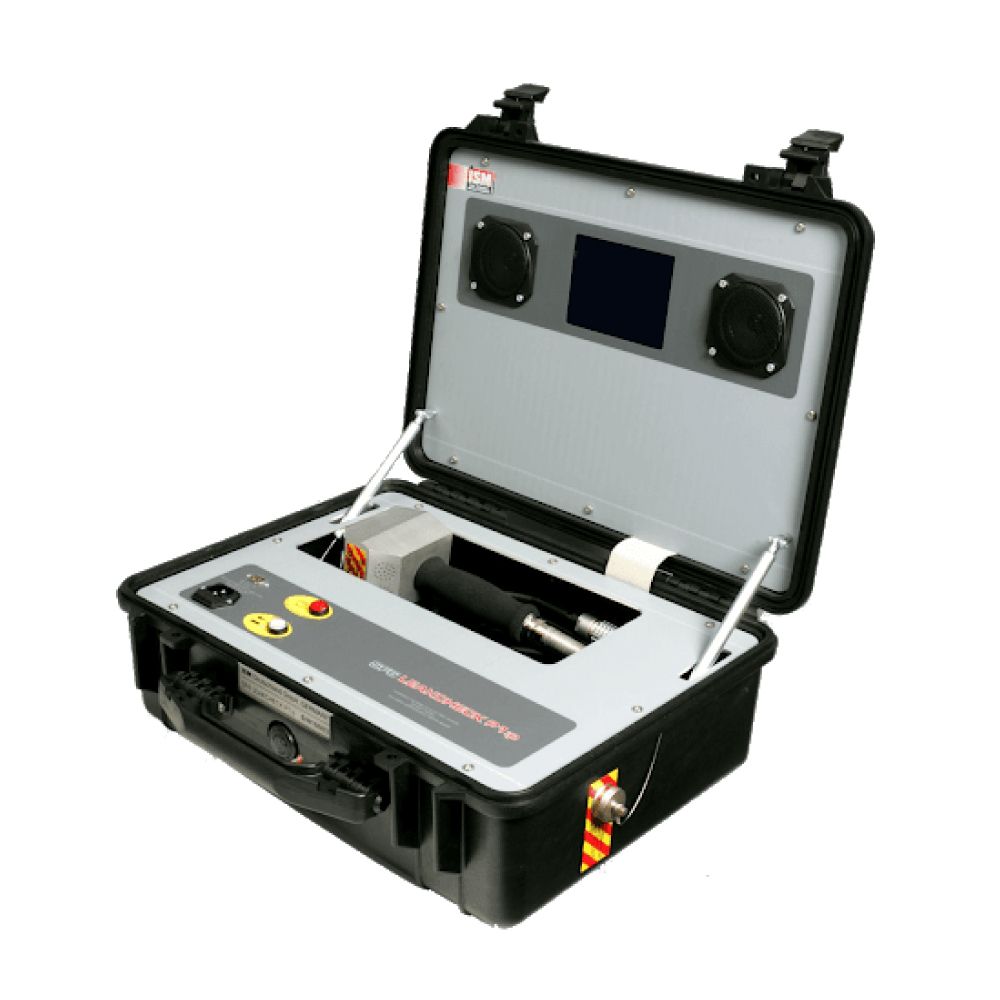

SF6 LeakCheck P1:p with award winning Negative Ion Capture (NIC) technology is designed for the location, leak testing, and measurement of SF6 leaks in high voltage electrical switchgear. The LeakCheck P1:p SF6 leak detector is unaffected by large leaks and will continue to remain uncontaminated even after exposure to 100% SF6 gas.
Specifications:
Minimum Principle:
• Negative Ion Capture (NIC): a non-radioactive,  non-restricting carriage and no licensing required.
Sensitivity:
• StandardSF6 GasCheckP1andLeakCheckP1:p: 1 x 10-7 ml/sec, 1 ppm, 0.01 gm/yr SF6.
• Highsense option: 1 x 10-8 ml/sec, 0.1 ppm, 0.001 gm/yr SF6.
Response:
• T90 =<1 second rise and clear down.
Temperature:
• Storage: -10oC to 60oC.
• Operating: 0oC to 50oC
Alarm:
• Audio and visual with an optional handset alarm.
Calibration:
• Via CalCheck calibration accessory.
Operation:
• PLead acid battery.
• Internal and fully protected Recharge between 85-265 AC V, 50/60Hz.
Data Logging:
• Over 500 data points with date and time stamp.
• Download via RS232 to a PC.
Measurement Units:
• Measures in ml/sec, gm/yr and ppm.
• Range: each unit 1:500.
• Accuracy: ± 5% of displayed leak rate or ± 2 digit.
• Repeatability: ± 1 digit.
Dimensions:
• Consol: 500 x 400 x 190 mm
• Shipped: 520 x 430 x 210 mm.
Weight:
• SF6 LeakCheck P1:p. Shipped 15 kg.
