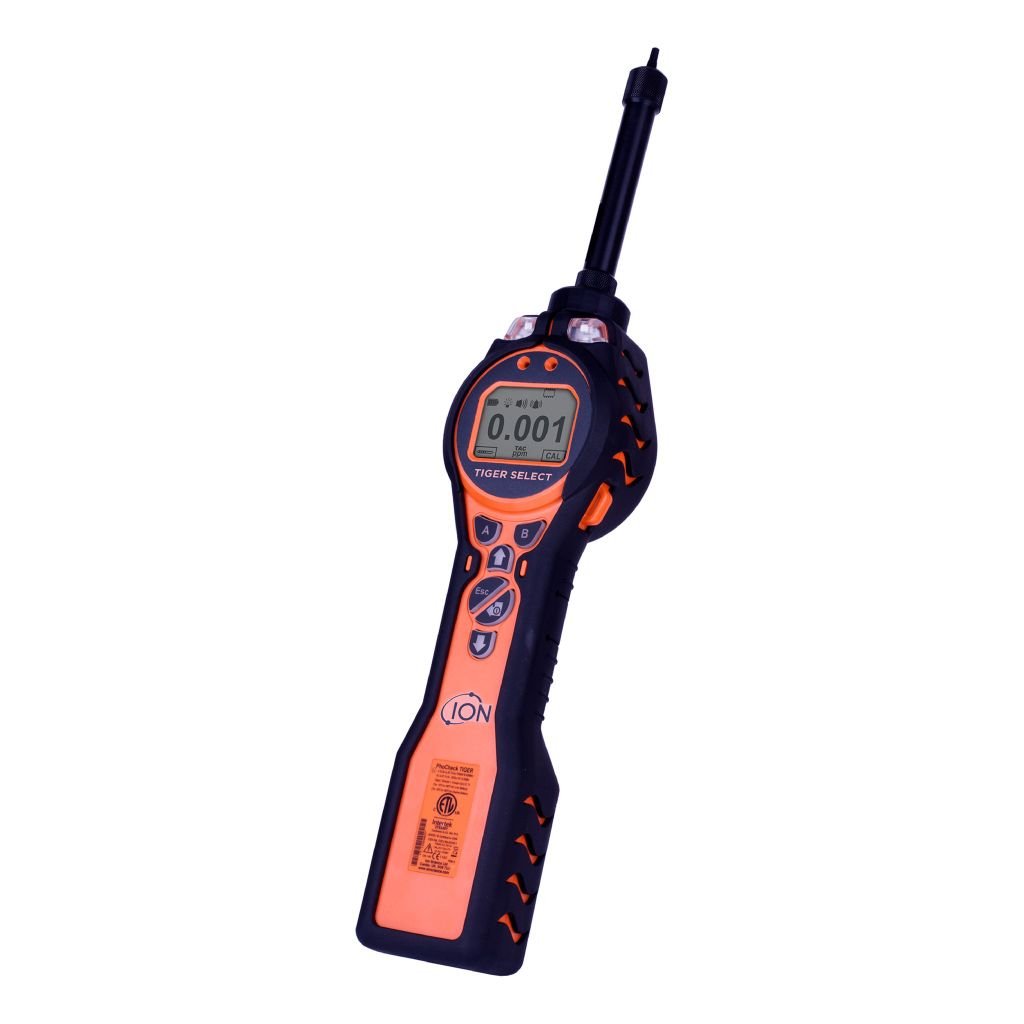

Tiger Select
Description
The Tiger Select hand-held gas detector with two mode operation rapidly detects benzene and Total Aromatic Compounds providing accurate, reliable data you can count on.
Its unique ability to rapidly switch between TAC mode and Tube mode means Tiger Select offers the most versatile portable benzene specific product on the market.
Specififcations:
Resolution:
• 10 ppb benzene.
Maximum Reading:
• 0 to 200 ppm benzene in tube mode.
• Up to 20,000 ppm in TAC mode (gas dependent).
Accuracy:
• ± 10% display reading ± one digit benzene.
Linearity:
• ± 5% display reading ± one digit.
Response Time:
• T90 < 2 seconds in normal running and TAC mode.
Response Time:
• 120 seconds in Tube mode. Progressive indication of benzene breakthrough is displayed in real time.
Battery Life:
• Li-ion: life up to 24 hours, charge time 6.5 hours.
• Alkaline: 3 x AA, typically 8.5 hours life.
Alarm:
• Flashing LED’s Amber (low alarm) Red (high alarm).
• Sounder 95 dBA at 300mm.
• Vibration on alarm.
• Pre-programmed TWA and STEL*.
Data Logging:
• > 120,000 data log points including date and time stamp.
Communication:
• Direct USB 1.1.
PID Lamps:
• 10.0eV Krypton PID lamp.
Flow Rate:
• > 220 ml/min (150 cc/min flow alarm).
Temperature:
• Operating: -20°C to 60°C.
• Humidity: 0-99% RH (non condensing).
Dimensions:
• Length:465 x Height:89 x Depth:61 mm.
Weight:
• Standardcase Packed 5kg.
Protection:
• Designed to IP65 (heavy rain)
• 1180
• EMC tested to EN61326-1:2006, EN50270:2006 & CFR 47:2008 Class A.
Intrinsically Safe Approvals:
• II 2G Ex ia IIC T4 (-15°C≤Ta≤+45°C.
• ITS09 ATEX 26890X, IECEx ITS 10.0036X.
• Certified to CAN/CSA Std. C22.2 No. 61010-1.
