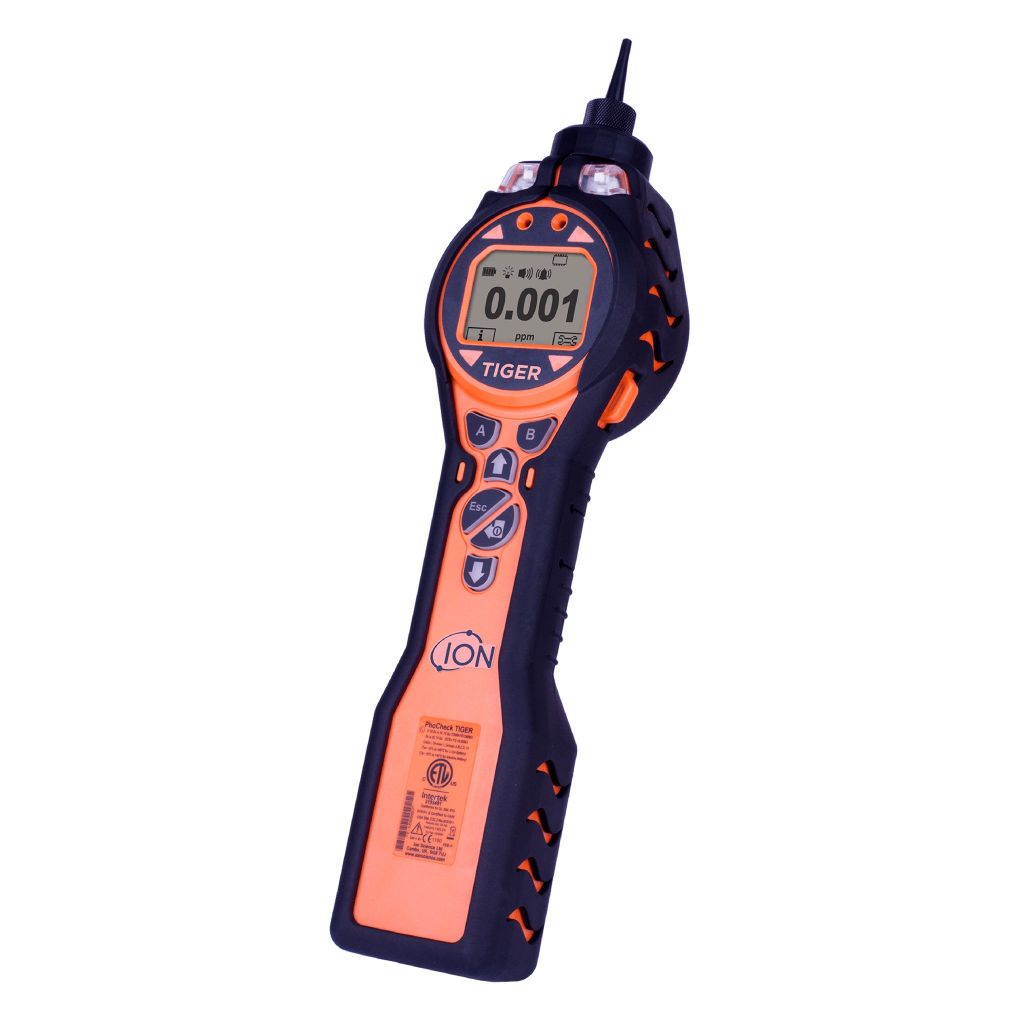

Tiger VOC

The Tiger VOC provides a dynamic detection range of 0 to 20,000 parts per million (ppm) with a minimum sensitivity of 0.001 ppm (1 ppb), offering the widest measurement range of any other VOC detector on the market.
This handheld VOC detector has the fastest response time on the market of just two seconds and is just as quick to clear down.
Detects over 480 VOCs and toxic compounds.
The Tiger handheld VOC detector is a revolutionary handheld gas detection instrument for the rapid, accurate detection of volatile organic compounds (VOCs) within the harshest of environments.
Specifications:
Minimum Resolution:
• 1 ppb or 0.001 mg/m3.
Maximum Reading:
• 20,000 ppm or 20,000 mg/m3.
Response Time:
• T90 <2 seconds.
Accuracy:
• ± 5% display reading ± one digit.
Linearity:
• ± 5% display reading ± one digit.
Battery Life:
• Li-ion: life up to 24 hours continual use.
• Alkaline: (Duracell Procell MN 1500) life up to 8.5 hours continual use.
Data Logging:
• Including date / time: 120,000 points.
Calibration:
• Standard calibration 100 ppm isobutylene
• Custom calibration capability
Alarm:
• Flashing LED and 95 dBA at 300mm (12”) audible sounder. Selectable vibrating alarm.
• Pre-programmed TWA and STEL*.
• Pre-programmed with over 480 gases*.
Lamps:
• 10.6 eV Krypton PID lamp (standard) and 11.7eV lamps available.
Communication:
• Direct USB 1.1 connection.
Flow Rate:
• 220 ml/min in ambient conditions (with blocked flow alarm).
Temperature:
• Operating: -20oC to 60°C.
• Humidity: 0-99% RH (non condensing).
Weight & Dimensions:
• Instrument weight: 0.72 kg.
• Packed weight: 5.5 kg.
• Width: 340 x Height: 90 x Depth: 60 mm (instrument without probe).
• Standard case 420 x 320 x 97 mm.
Protection:
• Designed to IP65 (heavy rain).
• CE1180.
• EMC tested to EN61326-1:2006,  EN 50270:2006 & CFR 47:2008 Class A.
Intrinsically Safe Approvals:
• II1GExiaIICT4Ga.
• Tamb = – 15oC =Ta =+45oC. (with alkaline battery pack) ITS09ATEX26890X IECEx ITS 10.0036X.
• 3193491 conforms to UL Std. 913, 61010-1 &.
• Certified to CAN/CSA Std. C22.2 No. 61010-1.
