TRIPODS

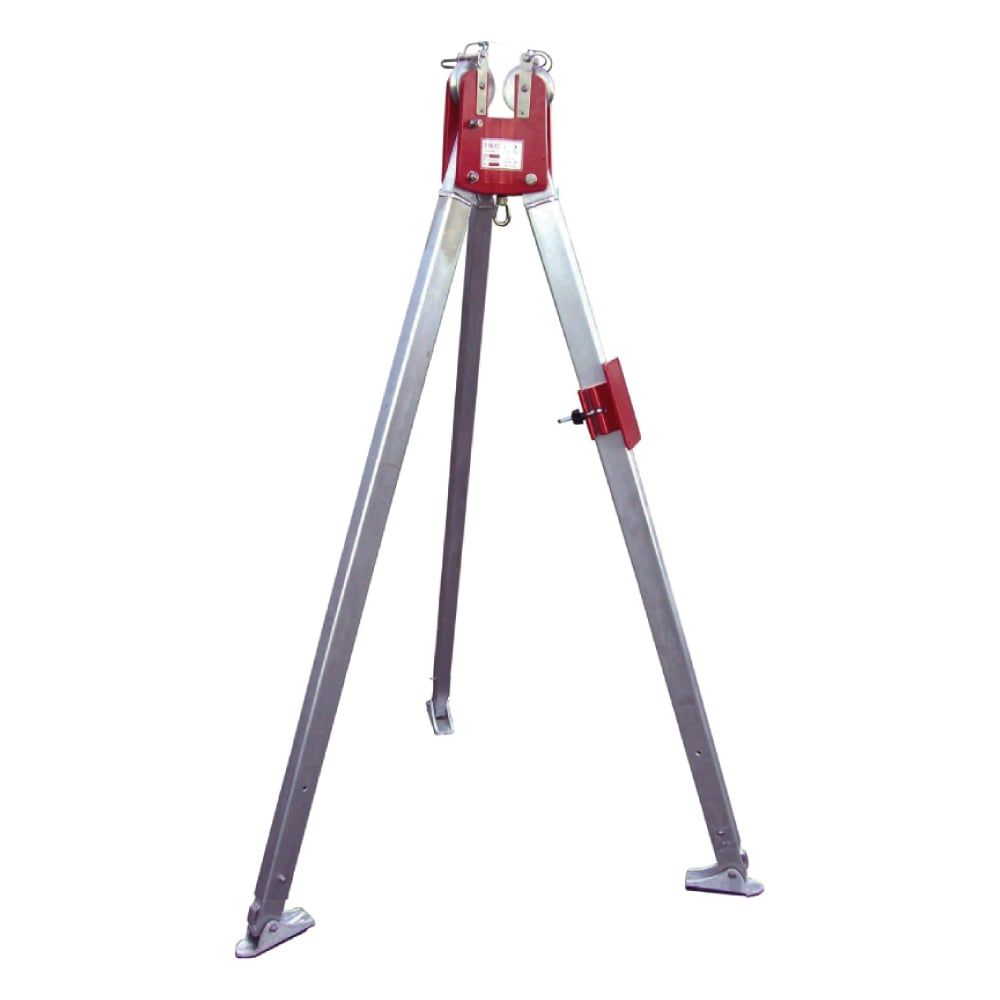

The Tripod Heads are manufactured from Cast Aluminium for strength and durability. The standard version (TP143) is fitted with two pulley wheels, with removable captive pins to keep the rope/wire line in place on the pulley wheel. The standard Tripod also has two  swivel-eye anchor points. The Tripod legs are adjusted with R-Clips, up to a maximum overall height of 255 cm (approximately 100”). The Tripods are ideal for work and rescue in confined spaces.
Extensive testing of our Tripods without a foot retention strap has confirmed that our Tripods meet/exceed the strength requirements of the standard, without the need to tether the feet. Our Tripod can therefore be supplied and used without a foot retention strap, meaning that the trip hazard around the Tripod is greatly reduced.
• Number of persons: 2
• Working Load Limit: 360 kg
• Minimum Breaking Strength: 3600 kN
• FinishPowder coated (head)
• Colour: Red
• Weight: 22 kg
• Approved Standards: EN 795 (B) 1997 Meets NFPA [G] Rating
